恩智浦FS86功能安全

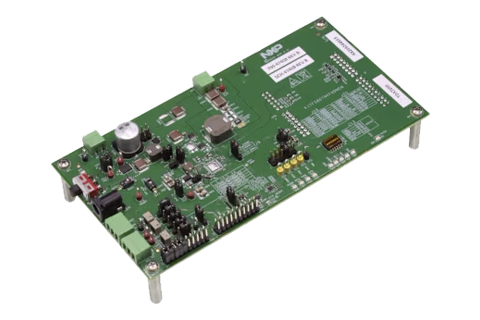

對于ADAS和汽車電氣化而言，功能安全愈來愈重要。恩智浦針對域控制（ASIL B和D）的FS86安全SBC評估板重點展示其功率性能、安全集成以及域控制器應用的系統可擴展性，以滿足多個MCU要求。該評估板采用多個Nexperia部件。
主要特性與優勢
| • 非常適合域控制器和ADAS應用，包括24 V和12 V電池網絡中的雷達和視覺系統 • 評估板上配有多個開關模式穩壓器、LDO穩壓器和升壓穩壓器 • 通過XFAILB引腳增強領導者/跟隨者上電時序管理 • 可監控多達10個電壓，精度為+/-1% • 通過具有8位CRC的32位I2C接口進行設備控制 • 通過一次性可編程(OTP)存儲器實現永久設備定制 • 支持汽車安全完整性等級(ASIL) B到D的可擴展產品組合 |
關鍵應用
更多信息
板上的產品 (7)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
74LVC3G04DC-Q100 | Triple inverter | Production | |
|
BC858B | PNP general purpose transistor | Production | |
|
BUK9M9R5-40H | N-channel 40 V, 9.5 m? logic level MOSFET in LFPAK33 | Production | |
|
|
BUK9M3R3-40H | N-channel 40 V, 3.3 m? logic level MOSFET in LFPAK33 | Production | |
|
PMEG060V100EPD | 60 V, 10 A low VF MEGA Schottky barrier rectifier | NotForDesignIn | |
|
PMEG6030EVP | 60 V, 3 A Schottky barrier rectifier | Production | |
|
|
PMEG6045ETP | High-temperature 60 V, 4.5 A Schottky barrier rectifier | Production |
相關板塊 (1)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|

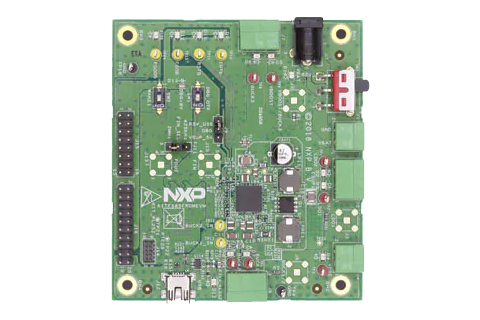

NXP-FS85-Functional-safety | NXP FS85 Functional safety | Reference design |
|
板上的產品 (7)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
74LVC3G04DC-Q100 | Triple inverter | Production | |
|
|
BC858B | PNP general purpose transistor | Production | |
|
|
BUK9M9R5-40H | N-channel 40 V, 9.5 m? logic level MOSFET in LFPAK33 | Production | |
|
|
BUK9M3R3-40H | N-channel 40 V, 3.3 m? logic level MOSFET in LFPAK33 | Production | |
|
|
PMEG060V100EPD | 60 V, 10 A low VF MEGA Schottky barrier rectifier | NotForDesignIn | |
|
|
PMEG6030EVP | 60 V, 3 A Schottky barrier rectifier | Production | |
|
|
PMEG6045ETP | High-temperature 60 V, 4.5 A Schottky barrier rectifier | Production |
相關板塊 (1)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
|
NXP-FS85-Functional-safety | NXP FS85 Functional safety | Reference design |
|
