NEX40400EVM-05：4.5 V到40 V，600 mA，F(xiàn)PWM，1.05 MHz，同步降壓轉換器評估板

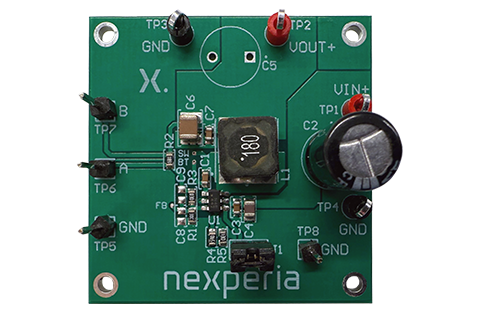

NEX40400EVM-05評估板是組裝在兩層PCB上的降壓DC-DC開關電壓轉換器的參考設計。它支持測試NEX40400降壓轉換器的功能和性能。
主要特性和優勢
• 4.5 V到40 V輸入電壓范圍
• 600 mA連續輸出電流
• 5 V輸出
• 1.05 MHz開關頻率的強制PWM工作模式
• 適用于高轉換率和低壓差應用的頻率折返
• 內部補償
• 帶間歇模式的短路保護
板上的產品 (6)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
NEX40400ADA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400CDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400DDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400EDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400FDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production | |
|
|
NEX40400BDA | 4.5 V to 40 V, 600 mA, synchronous step-down converter | Production |
