NXF6505B-Q100評估板

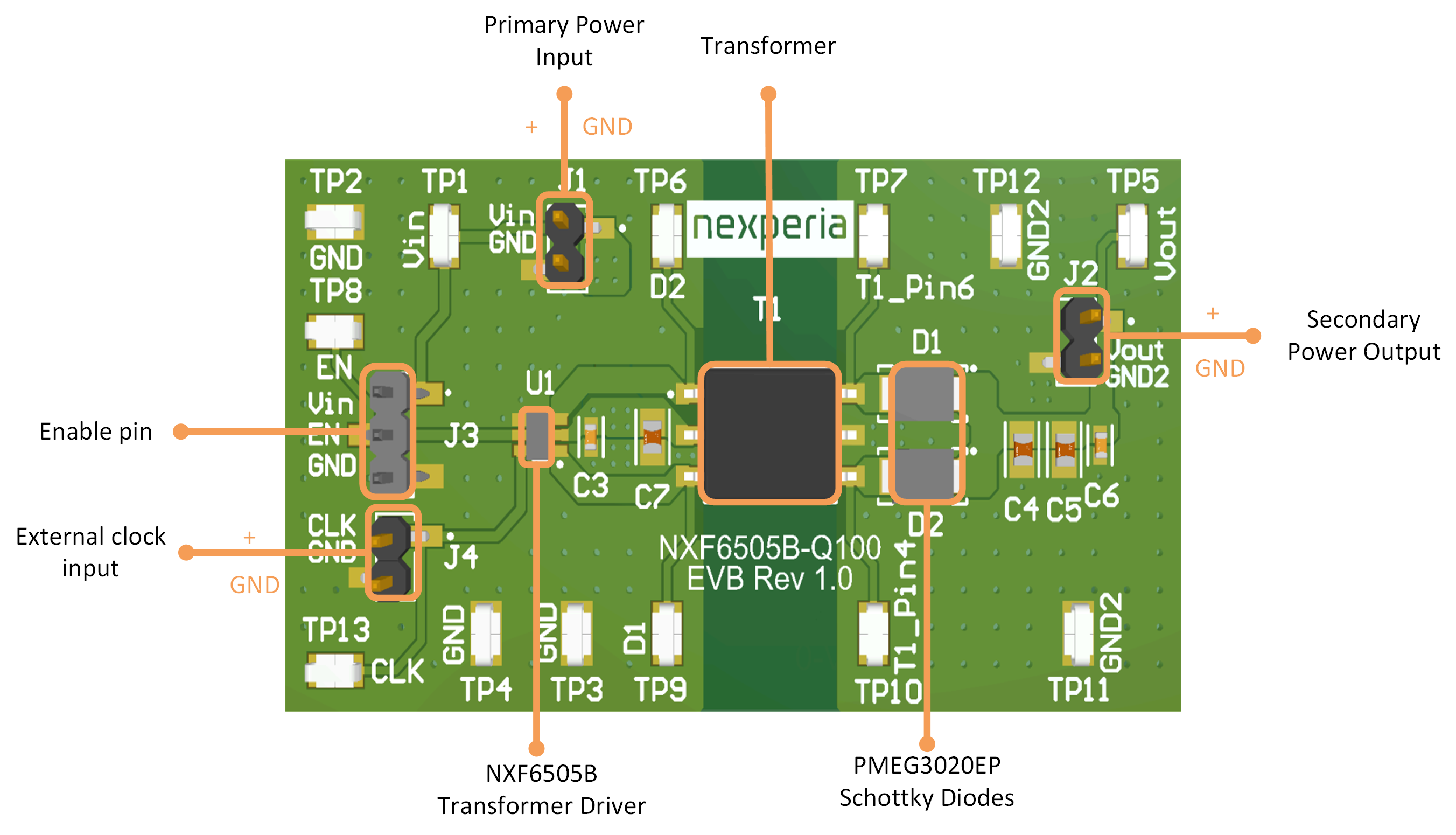

NXF6505B評估板可評估Nexperia的NXF6505B，后者是用于隔離電源的低噪聲、1.2 A推挽式變壓器驅動器。該EVB可為隔離電源提供一個正輸出電壓。為便于評估該EVB，增加了用于測量電路電壓的測試點。
NXF6505B-Q100評估板
主要特性與優勢
輸入電壓范圍：VCC = 2.25 V至5.5 V
• 最大輸出電流：
• NXF6505B-Q100: 1.2 A
• 啟用引腳
• 外部時鐘引腳
• 故障安全輸入
板上的產品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
NXF6505BDA-Q100 | Low-noise, 1.2 A transformer driver for isolated power supplies | Qualification |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
nxf6501-q100-evaluation-board | NEVB-NXF6501DC evaluation board | Evaluation board | ||
|
nxf6505a-q100-evaluation-board | NEVB-NXF6505ADA evaluation board | Evaluation board |
板上的產品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
NXF6505BDA-Q100 | Low-noise, 1.2 A transformer driver for isolated power supplies | Qualification |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
|
nxf6501-q100-evaluation-board | NEVB-NXF6501DC evaluation board | Evaluation board | ||
|
|
nxf6505a-q100-evaluation-board | NEVB-NXF6505ADA evaluation board | Evaluation board |
文檔 (1)
| 文件名稱 | 標題 | 類型 | 日期 |
|---|---|---|---|
| UM90035 | NXF6505B-Q100 Low noise, 1.2 A transformer driver for isolated power supplies evaluation board | User manual | 2024-07-02 |
